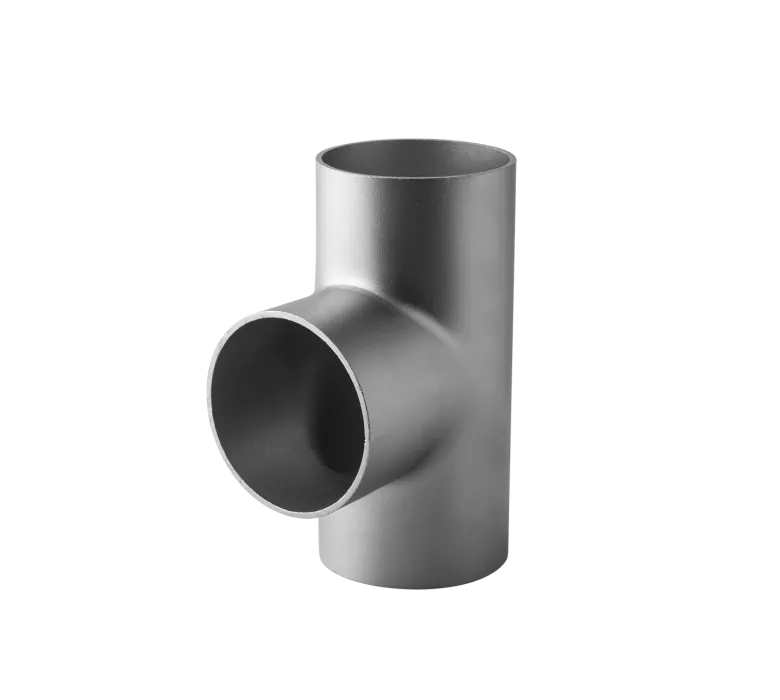

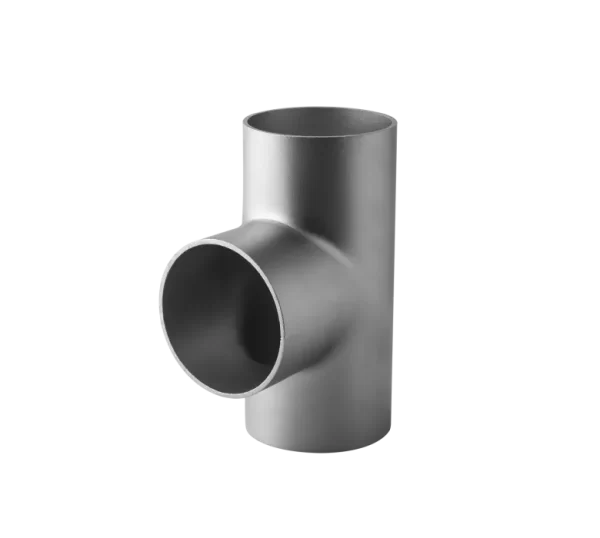

Tee
Ricavato da: estrusione tubo smls
AISI disponibili: 1.4301/1.4307/304/304L – 1.4401/1.4404/316/316L
Disponibilità: 1/2” – 12” disponibili in sch 10/10s, sch 40/40s e sch 80/80s, altre misure e schedule disponibili su richiesta
Normativa: ASME B16.9
Scheda tecnica
| INCH | D | C | M | Wall thickness | ||
|---|---|---|---|---|---|---|
| SCH 10S | SCH 40S | SCH 80S | ||||
| 1/2'' | 21.3 | 25 | 25 | 2.11 | 2.77 | 3.73 |
| 3/4'' | 26.7 | 29 | 29 | 2.11 | 2.87 | 3.91 |
| 1'' | 33.4 | 38 | 38 | 2.77 | 3.38 | 4.55 |
| 1''1/4 | 42.2 | 48 | 48 | 2.77 | 3.56 | 4.85 |
| 1''1/2 | 48.3 | 57 | 57 | 2.77 | 3.68 | 5.08 |
| 2'' | 60.3 | 64 | 64 | 2.77 | 3.91 | 5.54 |
| 2''1/2 | 73 | 76 | 76 | 3.05 | 5.16 | 7.01 |
| 3'' | 88.9 | 86 | 86 | 3.05 | 5.49 | 7.62 |
| 3''1/2 | 101.6 | 95 | 95 | 3.05 | 5.74 | 8.08 |
| 4'' | 114.3 | 105 | 105 | 3.05 | 6.02 | 8.56 |
| 5'' | 141.3 | 124 | 124 | 3.4 | 6.55 | 9.53 |
| 6'' | 168.3 | 143 | 143 | 3.4 | 7.11 | 10.97 |
| 8'' | 219.1 | 178 | 178 | 3.76 | 8.18 | 12.7 |
| 10'' | 273 | 216 | 216 | 4.19 | 9.27 | 12.7 |
| 12'' | 323.8 | 254 | 254 | 4.57 | 9.53 | 12.7 |
| 14'' | 355.6 | 279 | 279 | 4.78 | 9.53 | 12.7 |
| 16'' | 406.4 | 305 | 305 | 4.78 | 9.53 | 12.7 |
| 18'' | 457 | 343 | 343 | 4.78 | 9.53 | 12.7 |
| 20'' | 508 | 381 | 381 | 5.54 | 9.53 | 12.7 |
| 22'' | 559 | 419 | 419 | 5.54 | 9.53 | 12.7 |
| 24'' | 610 | 432 | 432 | 6.35 | 9.53 | 12.7 |
