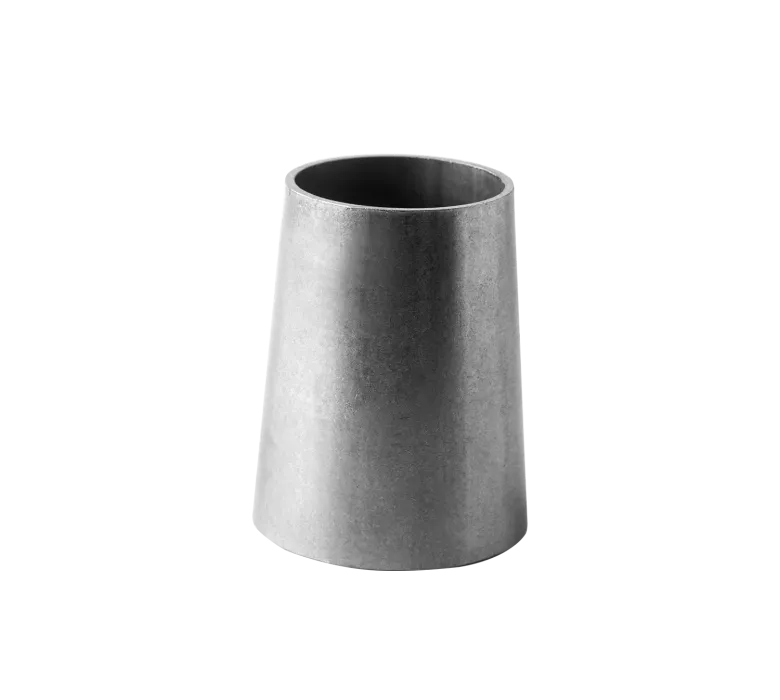

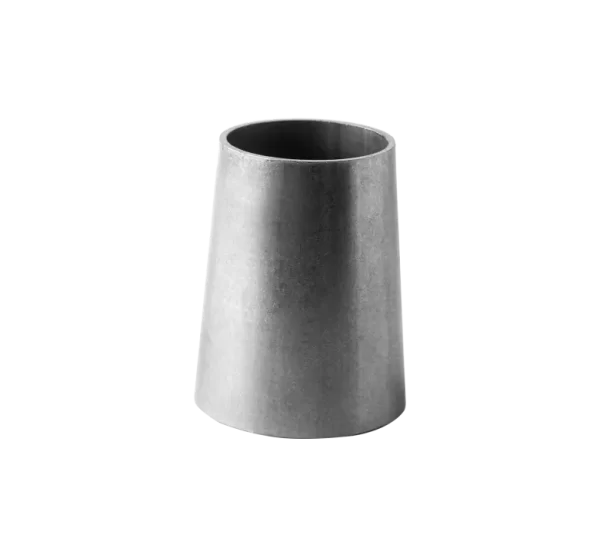

Riduzione concentrica
Ricavato da: estrusione tubo smls
AISI disponibili: 1.4301/1.4307/304/304L – 1.4401/1.4404/316/316L
Disponibilità: 1/2” – 12” disponibili in sch 10/10s, sch 40/40s e sch 80/80s, altre misure e schedule disponibili su richiesta
Normativa: ASME B16.9
Scheda tecnica
| INCH 1 | INCH 2 | D | D! | H | Wall thickness | ||
|---|---|---|---|---|---|---|---|
| SCH 10S | SCH 40S | SCH 80S | |||||
| 3/4" | 1/2" | 26.7 | 21.3 | 38 | 2,11-2,11 | 2,87-2,77 | 3,91-3,73 |
| 3/4" | 3/8" | 26.7 | 17.3 | 38 | 2,11-1,65 | 2,87-2,31 | 3,91-3,2 |
| 1" | 3/4" | 33.4 | 26.7 | 51 | 2,77-2,11 | 3,38-2,87 | 4,55-3,91 |
| 1" | 1/2" | 33.4 | 21.3 | 51 | 2,77-2,11 | 3,38-2,77 | 4,55-3,73 |
| 1"1/4 | 1" | 42.2 | 33.4 | 51 | 2,77-2,77 | 3,56-3,38 | 4,85-4,55 |
| 1"1/4 | 3/4" | 42.2 | 26.7 | 51 | 2,77-2,11 | 3,56-2,87 | 4,85-3,91 |
| 1"1/4 | 1/2" | 42.2 | 21.3 | 51 | 2,77-2,11 | 3,56-2,77 | 4,85-3,73 |
| 1"1/2 | 1"1/4 | 48.3 | 42.2 | 64 | 2,77-2,77 | 3,68-3,56 | 5,08-4,85 |
| 1"1/2 | 1" | 48.3 | 33.4 | 64 | 2,77-2,77 | 3,68-3,38 | 5,08-4,55 |
| 1"1/2 | 3/4" | 48.3 | 26.7 | 64 | 2,77-2,11 | 3,68-2,87 | 5,08-3,91 |
| 1"1/2 | 1/2" | 48.3 | 21.3 | 64 | 2,77-2,11 | 3,68-2,77 | 5,08-3,73 |
| 2" | 1"1/2 | 60.3 | 48.3 | 76 | 2,77-2,77 | 3,91-3,68 | 5,54-5,08 |
| 2" | 1"1/4 | 60.3 | 42.2 | 76 | 2,77-2,77 | 3,91-3,56 | 5,54-4,85 |
| 2" | 1" | 60.3 | 33.4 | 76 | 2,77-2,77 | 3,91-3,38 | 5,54-4,55 |
| 2" | 3/4" | 60.3 | 26.7 | 76 | 2,77-2,11 | 3,91-2,87 | 5,54-3,91 |
| 2"1/2 | 2" | 73 | 60.3 | 89 | 3,05-2,77 | 5,16-3,91 | 7,01-5,54 |
| 2"1/2 | 1"1/2 | 73 | 48.3 | 89 | 3,05-2,77 | 5,16-3,68 | 7,01-5,08 |
| 2"1/2 | 1"1/4 | 73 | 42.2 | 89 | 3,05-2,77 | 5,16-3,56 | 7,01-4,85 |
| 2"1/2 | 1" | 73 | 33.4 | 89 | 3,05-2,77 | 5,16-3,38 | 7,01-4,55 |
| 3" | 2"1/2 | 88.9 | 73 | 89 | 3,05-3,05 | 5,49-5,16 | 7,62-7,01 |
| 3" | 2" | 88.9 | 60.3 | 89 | 3,05-2,77 | 5,49-3,91 | 7,62-5,54 |
| 3" | 1"1/2 | 88.9 | 48.3 | 89 | 3,05-2,77 | 5,49-3,68 | 7,62-5,08 |
| 3" | 1"1/4 | 88.9 | 42.2 | 89 | 3,05-2,77 | 5,49-3,56 | 7,62-4,85 |
| 3"1/2 | 3" | 101.6 | 88.9 | 102 | 3,05-3,05 | 5,74-5,49 | 8,08-7,62 |
| 3"1/2 | 2"1/2 | 101.6 | 73 | 102 | 3,05-3,05 | 5,74-5,16 | 8,08-7,01 |
| 3"1/2 | 2" | 101.6 | 60.3 | 102 | 3,05-2,77 | 5,74-3,91 | 8,08-5,54 |
| 3"1/2 | 1"1/2 | 101.6 | 48.3 | 102 | 3,05-2,77 | 5,74-3,68 | 8,08-5,08 |
| 3"1/2 | 1"1/4 | 101.6 | 42.2 | 102 | 3,05-2,77 | 5,74-3,56 | 8,08-4,85 |
| 4" | 3"1/2 | 114.3 | 101.6 | 102 | 3,05-3,05 | 6,02-5,74 | 8,56-8,08 |
| 4" | 3" | 114.3 | 88.9 | 102 | 3,05-3,05 | 6,02-5,49 | 8,56-7,62 |
| 4" | 2"1/2 | 114.3 | 73 | 102 | 3,05-3,05 | 6,02-5,16 | 8,56-7,01 |
| 4" | 2" | 114.3 | 60.3 | 102 | 3,05-2,77 | 6,02-3,91 | 8,56-5,54 |
| 4" | 1"1/2 | 114.3 | 48.3 | 102 | 3,05-2,77 | 6,02-3,68 | 8,56-5,08 |
| 5" | 4" | 141.3 | 114.3 | 127 | 3,4-3,05 | 6,55-6,02 | 9,53-8,56 |
| 5" | 3"1/2 | 141.3 | 101.6 | 127 | 3,4-3,05 | 6,55-5,74 | 9,53-8,08 |
| 5" | 3" | 141.3 | 88.9 | 127 | 3,4-3,05 | 6,55-5,49 | 9,53-7,62 |
| 5" | 2"1/2 | 141.3 | 73 | 127 | 3,4-3,05 | 6,55-5,16 | 9,53-7,01 |
| 5" | 2" | 141.3 | 60.3 | 127 | 3,4-2,77 | 6,55-3,91 | 9,53-5,54 |
| 6" | 5" | 168.3 | 141.3 | 140 | 3,4-3,4 | 7,11-6,55 | 10,97-9,53 |
| 6" | 4" | 168.3 | 114.3 | 140 | 3,4-3,05 | 7,11-6,02 | 10,97-8,56 |
| 6" | 3"1/2 | 168.3 | 101.6 | 140 | 3,4-3,05 | 7,11-5,74 | 10,97-8,08 |
| 6" | 3" | 168.3 | 88.9 | 140 | 3,4-3,05 | 7,11-5,49 | 10,79-7,62 |
| 6" | 2"1/2 | 168.3 | 73 | 140 | 3,4-3,05 | 7,11-5,16 | 10,79-7,01 |
| 8" | 6" | 219.1 | 168.3 | 152 | 3,76-3,4 | 8,18-7,11 | 12,7-10,79 |
| 8" | 5" | 219.1 | 141.3 | 152 | 3,76-3,4 | 8,18-6,55 | 12,7-9,53 |
| 8" | 4" | 219.1 | 114.3 | 152 | 3,76-3,05 | 8,18-6,02 | 12,7-8,56 |
| 8" | 3"1/2 | 219.1 | 101.6 | 152 | 3,76-3,05 | 8,18-5,71 | 12,7-8,08 |
